Fuji NXT Control Board FH1212C0F XK05780

Delivery Terms: EXWORKS FOB CIF Payment Terms： Pay In Advance Payment Methods: T/T Western Union Credit Card Transportation Mode: Ocean Transport Air Transport Air Express Service International Express: DHL FedEx UPS TNT EMS

Category：

Fuji

Product accessories：

Contac Us

Product Description

Smt Machine Spare Parts Fuji NXT Control Board FH1212C0F XK05780

Part Number: XK05780

Model Number: FH1212C0F

Sell & Buy smt machine and spare parts.

Supply all smt spare parts at lower price.

Other spare parts:

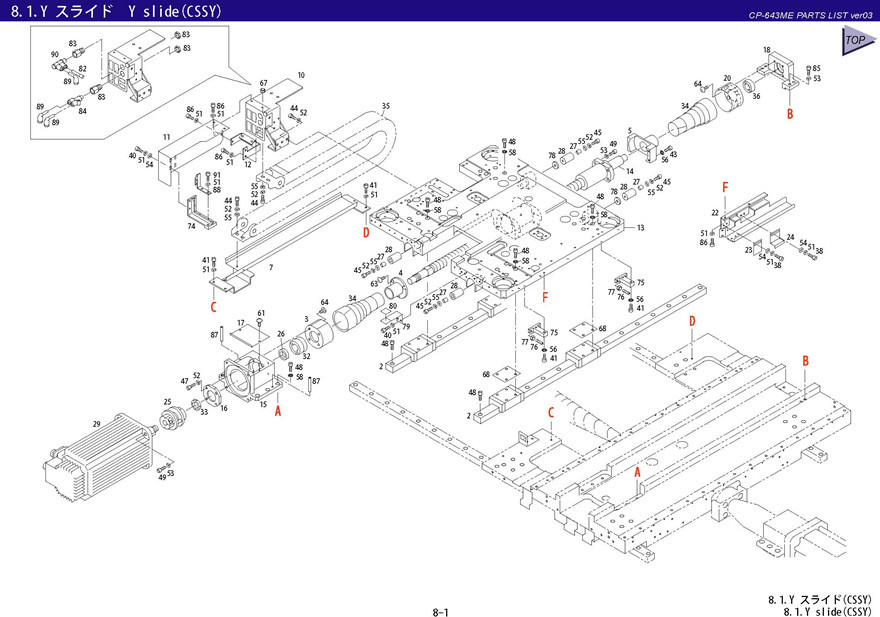

番号 No.	図番 &ｺｰﾄﾞ番号 Drg.No.&CodeNo.	個数 QTY	品名 Description		規格 Rating	備考 Remarks
58	W1013A		WASHER,CONICAL	ﾜｯｼｬ皿	M-6-H
61	K5203A		SCREW,TRUSS	小ﾈｼﾞﾄﾗｽ	M3X6L
63	K5257A		SCREW,HEXSOCKETBUTTON	小ﾈｼﾞ六角穴ﾎﾞﾀﾝ	M4X8L
64	K5261A		SCREW,HEXSOCKETBUTTON	小ﾈｼﾞ六角穴ﾎﾞﾀﾝ	M5X10L
67	N1082A		NUT,HEX	ﾅｯﾄ六角	M5P=0.8
68	WSD0620	2	SPACER	ｽﾍﾟｰｻ	t=1.00	注1.Note.1
74	CSSY0171	1	BKT	BKT		X86～
75	WSY4530	2	BKT	BKT
76	N4043A		SCREW,HEXSOCKETSET	ﾈｼﾞ六角穴止め	M4X15L
77	N1080A		NUT,HEX	ﾅｯﾄ六角	M4
78	WSY4540	2	SPACER	ｽﾍﾟｰｻ
79	CSSY0240	1	BKT	BKT
80	CSSY0030	1	SEAL	ｼｰﾙ
81	Y30349	1	UNION	ﾕﾆｵﾝ	KQE06-00
82	H3145E	1	PLUG	ﾌﾟﾗｸﾞ	KQP-06
83	Y3035A	2	UNION	ﾕﾆｵﾝ	KQE06-01
84	K5075C	1	CONNECTOR	ｺﾈｸﾀ	KQU06-01S
85	H5321A		BOLT,HEXSOCKET	ﾎﾞﾙﾄ六角穴	M6X12L
86	H5287A		BOLT,HEXSOCKET	ﾎﾞﾙﾄ六角穴	M4X8L
87	H2075A	2	PIN,TAPER	ﾋﾟﾝﾃｰﾊﾟ	φ6X45ﾀｯﾌﾟﾄｳｼ
88	CSSY0180	1	BKT	BKT		X86～
89	Y3052T	3	UNION,ELBOW	ﾕﾆｵﾝｴﾙﾎﾞ	KQL06-99
90	Y3065A	1	UNION,ELBOW	ﾕﾆｵﾝｴﾙﾎﾞ	KQVD06-01S
91	H5287A		BOLT,HEXSOCKET	ﾎﾞﾙﾄ六角穴	M4X8L
注1.仕様選択部品 WSD0710(t=0.95),WSD0720(t=1.05),WSD0730(t=1.10),WSD0740(t=0.975),WSD0750(t=1.025)
Note.1:(Specifiedpartselection)WSD0710(t=0.95),WSD0720(t=1.05),WSD0730(t=1.10),WSD0740(t=0.975),WSD0750(t=1.025)
注2.(15)BKTﾓｰﾀと(18)BKT支えは組み合わせ部品ですので同時に交換してください｡
Note.2:Thebkt,motorNo.15andthebkt,supportNo.18areusedasset.
Ifthereplacementofoneofthebktisnecessarybothmustbereplaced. ･

Fujintai will repay the trust of new and old customers with the most superior quality products, the most cost-effective price and the most perfect service.

FUJINTAI go the extra distance to offer you the very best deal for new and used SMT machine and spare parts by offering a comprehensive.

We providing you with top class service!

We ship to worldwide.
